Water taken from a river, canal, or reservoir for irrigation carries everything the catchment produces: leaves, algae, silt, sand, weed fragments, and organic debris. Left unscreened, this material clogs drip emitters, blocks spray nozzles, damages pump impellers, and fills pipework with sediment that reduces flow capacity year after year.
The global irrigation water filter market reached approximately USD 1.05 billion in 2025, growing at 8.2% annually [1]. That growth is driven by one reality: modern irrigation systems (particularly drip and micro-spray) demand clean water, and most farm water supplies are far from clean.
Coanda intake screens solve this at the intake. Instead of filtering debris after it has entered the system, a Coanda screen removes it before it reaches the pump: passively, continuously, and without electricity or moving parts. For agricultural operators managing intakes across remote or seasonal sites, this changes the economics of irrigation water management.
Table of Contents
- The Agricultural Water Quality Problem
- How Debris Damages Irrigation Systems
- How Coanda Screens Work as Farm Intake Filtration
- Coanda vs. Conventional Irrigation Intake Screens
- Box Screen Configurations for Portable Deployment
- Matching Slot Width to Irrigation Method
- Multi-Screen Arrays for Large Irrigated Areas
- Material Selection for Agricultural Water
- Seasonal and Remote Site Considerations
- Frequently Asked Questions
- References
The Agricultural Water Quality Problem
Farm water supplies are inherently variable. A river that flows clear in summer may carry heavy sediment during spring snowmelt. A canal that is clean at the start of the irrigation season accumulates algae and weed growth by midsummer. The water level in a reservoir falls through the season, exposing increasingly turbid water near the bottom.
The contaminants in agricultural water fall into four categories:
- Coarse debris: branches, leaves, plastic, crop residue, animal waste. Blocks intake pipes and damages pump impellers.
- Fine organic matter: algae filaments, weed fragments, pollen, decomposing vegetation. Clogs drip emitters and spray nozzles.
- Mineral sediment: sand, silt, clay. Abrades pump components, fills pipework, settles in reservoirs and tanks.
- Aquatic organisms: fish, snails, freshwater mussels, insect larvae. Fish protection regulations may require screening even at agricultural water abstraction (withdrawal) points in some jurisdictions.
Most agricultural operators deal with these problems only after they occur: cleaning emitters after they clog, replacing worn pump seals, flushing pipework between seasons. A Coanda intake screen prevents them in advance, at the intake, before contaminated water enters the system.
How Debris Damages Irrigation Systems
The damage is cumulative and often invisible until system performance has already degraded:
Drip irrigation is the most sensitive. Emitter orifices are typically 0.5–1.0 mm. Industry guidance recommends filtering out all particles larger than one quarter of the emitter passage diameter: meaning 125–250 micron (0.125–0.25 mm) filtration for reliable operation [2][3]. Any particle larger than this can bridge across the orifice, and organic material accumulates on rough surfaces inside the emitter labyrinth. A single clogged emitter means one crop plant receives no water. Across thousands of emitters on a commercial farm, even a 5% clog rate creates visible patches of water-stressed crops.
Centre pivot and spray systems have larger nozzle orifices (1–5 mm) but are still vulnerable to organic debris: algae strands, leaf fragments, and weed material wrap around nozzle openings and partially obstruct spray patterns, reducing uniformity.
Pumps suffer from sediment abrasion on impellers and wear rings. Sand and silt in river water act as a liquid abrasive, progressively widening clearances and reducing pump efficiency. We have seen irrigation pumps lose 10–15% efficiency within three seasons when pumping unscreened river water with moderate sediment loads.
Pipework accumulates sediment in low-velocity sections, gradually reducing pipe cross-section and increasing friction loss. On flood irrigation systems served by Coanda screens, US Bureau of Reclamation (USBR) studies at operating sites documented that farm fields formerly requiring 5 days to irrigate could be irrigated in 2 days: simply because the delivery pipeline was no longer partially blocked by sediment [4].
How Coanda Screens Work as Farm Intake Filtration
A Coanda intake screen uses the Coanda effect (the tendency of a fluid jet to adhere to a curved surface) to separate clean water from debris. Water flows over an acceleration plate, forms a thin, fast-moving sheet of water, and passes through tilted wedge wire (V-wire) slots. Debris larger than the slot width is carried over the screen surface and discharged downstream [5][6].
For agricultural applications, three characteristics matter most:
No electricity consumption. The entire process is gravity-driven. For remote farm intakes (often kilometres from any electrical connection) this eliminates the need for generators, solar panels, or battery systems to supply the screen with electricity. The screen works wherever water flows over a weir or a natural step in the river bed.
Self-cleaning operation. The high-velocity shearing flow across the tilted wire surface continuously sweeps debris off the screen face. During peak debris load (algae blooms, leaf fall, storm events) the screen keeps operating without human intervention. Published studies at operating sites and in the laboratory report sediment exclusion across a wide range, roughly 40 to 80%, depending on screen geometry, particle size and flow [7].
No moving parts. There is nothing to jam, seize, corrode, or require lubrication. For a farmer managing multiple intake points across a large property, this means the intakes can be left unattended for weeks or months between inspections.
For a complete explanation of Coanda screen physics, see: What Is a Coanda Intake Screen? The Complete Guide.
Coanda vs. Conventional Irrigation Intake Screens
| Parameter | Mesh Basket / Strainer | Self-Cleaning Pump Screen | Disc / Sand Media Filter | Coanda Screen |
|---|---|---|---|---|
| Position in system | At pump suction | At pump suction | After pump | Before pump: at the intake |
| Filtration | 3–10 mm | 60 micron–3 mm | 20–200 micron | 0.5 to 2.0 mm (1.0 mm standard) |
| Power required | None | Yes (backwash motor) | Yes (backwash pump) | None |
| Moving parts | None | Rotating brush/jet | Valves, backwash mechanism | None |
| Self-cleaning | No (manual) | Yes (powered) | Yes (powered) | Yes: passive |
| Pump protection | Partial: coarse only | Yes | No: located after the pump | Yes: full pre-filtration |
| Maintenance | Weekly–daily cleaning | Monthly service | Monthly backwash check | Annual inspection |
| Portable | Yes | Somewhat | No (fixed installation) | Yes: box screen configurations |
The critical distinction: Coanda screens are located before the pump, at the intake. Every other fine-filtration technology is located after the pump, meaning the pump itself is exposed to unfiltered water. A Coanda screen protects the entire system from the first point of entry.
For a comprehensive comparison across all intake technologies, see: Coanda Screen vs. Bar Screen vs. Drum Screen.

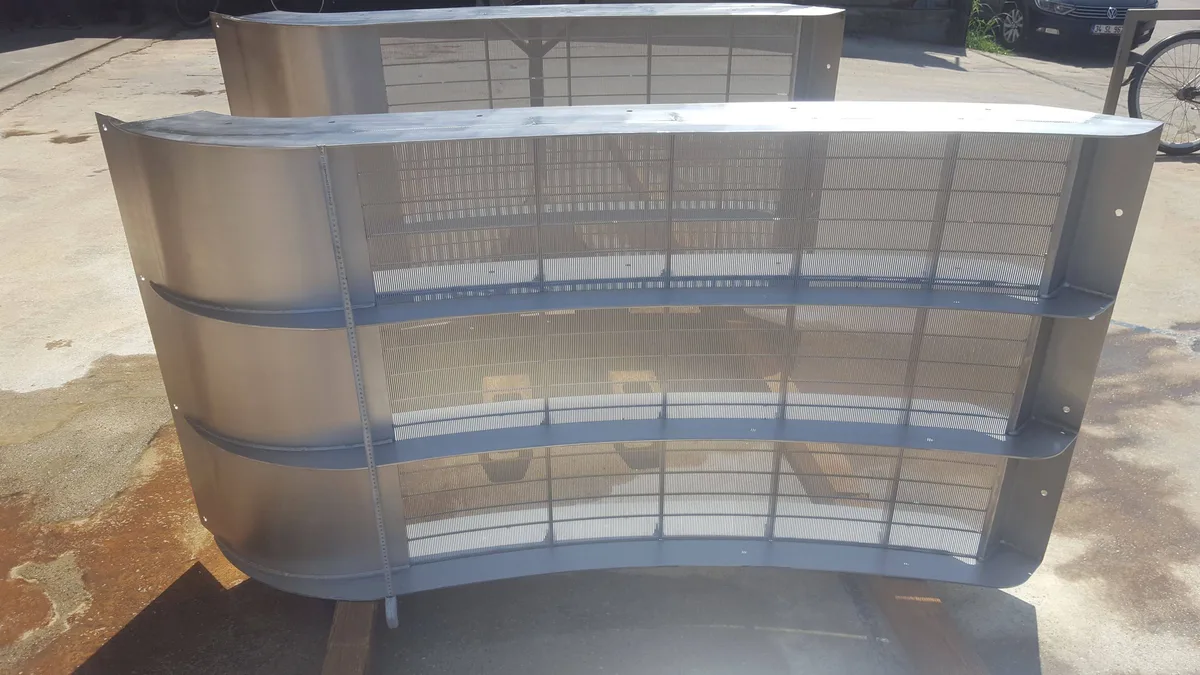

Box Screen Configurations for Portable Deployment
Standard Coanda screens are designed for permanent installation on a weir or a natural step in the river bed. For agricultural applications where intakes may need to be relocated between seasons, repositioned along a canal, or deployed at temporary withdrawal points, ADENCO manufactures box screen configurations: complete, ready-to-install units that combine the acceleration plate, screen panel and collection chamber in a single portable body.
A box screen can be:
- Placed on a canal bank and fed by a simple diversion channel or sluice gate
- Positioned at a river edge on a prepared base, with overflow returning to the river
- Relocated between sites using a pickup truck or small tractor: a typical single-panel box screen weighs 40–80 kg
- Combined side by side in multi-unit arrays where higher flow capacity is needed
The box screen format is particularly suited to flood and furrow irrigation systems where the intake point may shift along a river or canal depending on seasonal water levels. It is also suited to livestock watering systems where the intake must be protected from the animals that the water serves.
ADENCO designs box screens in the same material grades, slot widths and engineering quality as permanent panel screens: the only difference is the all-in-one portable format.
Matching Slot Width to Irrigation Method
The Coanda screen slot width should be matched to the downstream irrigation system's sensitivity:
| Irrigation Method | Typical Orifice Size | Recommended Coanda Slot | Notes |
|---|---|---|---|
| Flood / furrow | Open channel | 2.0 mm | Debris exclusion only: protects headgates and siphons |
| Centre pivot / spray | 1–5 mm nozzles | 1.0–1.5 mm | Excludes organic material that wraps around nozzles |
| Drip irrigation (pre-filter) | 0.5–1.0 mm emitters | 0.5–1.0 mm | Functions as coarse pre-filter; secondary disc/sand filter still recommended for final 100–200 micron filtration [2] |
| Livestock watering | Trough/tank fill | 1.5–2.0 mm | Removes debris and organic matter; protects float valves |
Important for drip irrigation: A Coanda screen with 0.5–1.0 mm slots removes all coarse debris, organic material, and sediment above the slot width: dramatically reducing the load on the downstream fine filter (disc, sand media, or screen filter). It does not replace the fine filter. The Coanda screen is the first-stage pre-filter that protects the pump and extends the cleaning interval of the secondary filter from days or weeks to months.
This two-stage approach (Coanda pre-filter at the intake, fine filter after the pump) is the most cost-effective filtration strategy for drip irrigation systems supplied from surface water.
Multi-Screen Arrays for Large Irrigated Areas
Commercial irrigated operations often require flow rates of 50–500+ l/s, beyond what a single Coanda panel provides at practical widths. ADENCO designs multi-screen arrays for these applications:
| Irrigated Area | Typical Flow Demand | Screen Configuration | Approximate Layout |
|---|---|---|---|
| 10–50 hectares | 20–80 l/s | Single panel (0.3–0.6 m) | One screen on weir |
| 50–200 hectares | 80–250 l/s | Dual panel (2 × 0.5–1.0 m) | Parallel panels on widened weir |
| 200–500 hectares | 250–600 l/s | Multi-panel array (3–5 panels) | Array across weir with individual collection chambers |
| >500 hectares | >600 l/s | Multiple arrays or distributed intakes | Layout designed per site |
Each panel in a multi-screen array has its own collection chamber and penstock connection, providing built-in redundancy. If one panel requires inspection or cleaning, the remaining panels continue operating. For large operations taking water from a single river, this array approach is more reliable than a single large intake, and more maintainable.
For detailed sizing methodology, see: How to Size a Coanda Intake Screen.
Material Selection for Agricultural Water
Most agricultural intakes take water from freshwater rivers, canals, or reservoirs with low chloride content. For these, 304 stainless steel is the standard and most economical choice.
316L is required when:
- The water comes from an estuarine river or tidal canal (chloride 200–1,000 ppm)
- Agricultural chemicals or fertiliser salts have elevated the water's chloride content
- The intake is downstream of road salt application zones
- The water has low pH from acid-sulfate soils or peat-stained runoff
For sites where the water chemistry is uncertain, a standard laboratory water analysis (chloride, pH, temperature) costs a fraction of the screen investment and prevents a material mismatch that could cause premature corrosion.
For detailed guidance, see: 304 vs. 316 Stainless Steel for Water Intake Screens.
Seasonal and Remote Site Considerations
Agricultural water demand is inherently seasonal. Irrigation intakes operate intensively for 4–8 months and then stand idle through the off-season. This creates specific design requirements:
Minimum flow for self-cleaning. At the start and end of the irrigation season, when river flow drops below the minimum the screen needs to clean itself, some debris may accumulate on the lower screen area. This is washed off automatically when flow rises. ADENCO sizes agricultural screens with this in mind: oversizing slightly to ensure that debris removal works reliably even as seasonal flow decreases.
Off-season protection. During winter or the off-season, screens at exposed sites can be removed (box screen format) or left in place. Permanently installed screens require no winterisation in most climates. In cold regions where frazil ice (small ice crystals carried in flowing water) is a risk, seasonal removal of portable box screens is the simplest and most cost-effective approach. For permanent screens requiring year-round operation, see: Anti-Icing Technology for Water Intake Screens.
Remote access. Farm intakes are often kilometres from the farmhouse or equipment shed, reached by unpaved farm tracks rather than paved roads. The passive, unattended operation of a Coanda screen is not a convenience in this context: it is an operational necessity. A conventional screen that requires weekly cleaning at a remote site will not be cleaned weekly. It will be neglected until it blocks, causing a pump failure or irrigation interruption during the critical growing season.
Flood resilience. River intakes in agricultural settings are routinely exposed to flood events. ADENCO designs screen frames and mounting systems to survive being overtopped by floodwater: with hydrodynamic profiles that let debris pass over rather than trapping it, and anchor systems designed for the site's flood recurrence interval.
Frequently Asked Questions
What is the best intake screen for agricultural irrigation?
For surface water (rivers, canals, reservoirs), Coanda screens provide the best first-stage pre-filtration for irrigation because they operate on gravity alone, need only a seasonal manual clean and an annual inspection, and carry debris away continuously: all critical for remote farm intakes. A Coanda pre-filter combined with a secondary disc or sand media filter provides the most reliable filtration chain for drip irrigation. For a full comparison of all intake screen technologies, see: Coanda Screen vs Bar Screen vs Drum Screen.
Can a Coanda screen replace my drip irrigation filter?
A Coanda screen replaces the coarse pre-filtration stage and dramatically extends the cleaning interval of your secondary fine filter, but it does not replace it entirely. Drip emitters require filtration to 100–250 microns (0.1–0.25 mm), while Coanda screens filter to 0.5 to 2.0 mm (1.0 mm standard). The Coanda screen removes all the material that rapidly loads and blocks conventional secondary filters (leaves, algae, weed fragments, coarse sand) so that the fine filter has to deal with only the residual fine silt. Operators using this two-stage approach report secondary filter cleaning intervals extending from days to months.
Are portable Coanda screens available for seasonal irrigation?
Yes. ADENCO manufactures box screen configurations: complete, ready-to-install portable units that combine the acceleration plate, screen panel and collection chamber. These can be placed on canal banks, positioned at river edges, relocated between sites using a pickup truck, or combined side by side in arrays for higher flow. Box screens are built to the same engineering and material standards as permanently installed screens but in a format suited to seasonal and relocatable agricultural use.
What slot size do I need for farm irrigation?
For flood and furrow irrigation, 2.0 mm slots provide effective debris exclusion. For centre pivot and spray systems, 1.0–1.5 mm prevents organic material from wrapping around nozzles. For drip irrigation pre-filtration, 0.5–1.0 mm removes the maximum debris load before the secondary fine filter. Livestock watering uses 1.5–2.0 mm. For the complete slot width selection methodology, see: The Engineer's Guide to Coanda Screen Design.
How much does an agricultural Coanda screen cost?
Cost depends on screen width (determined by flow rate), slot width, material grade, and whether a permanent panel or portable box screen format is chosen. For a typical single-panel farm intake, the screen cost is comparable to a quality powered pump screen, but with no ongoing electricity cost, no mechanical upkeep, and a 25-year design life instead of 5–10 years for powered alternatives. For pricing guidance, see: How Much Does a Coanda Screen Cost?.
Do I need fish screening on my farm irrigation intake?
In many jurisdictions, yes: even for water withdrawals for agriculture. The UK, EU, Australia, and many US states require screening at any water withdrawal point. Coanda screens with 0.5 to 2.0 mm slots (1.0 mm standard; narrower slots on request) can be supplied to meet most fish screening regulations without additional equipment. For a detailed regulatory overview covering Section 316(b), EU WFD, and UK eel regulations, see: Fish-Friendly Water Intake Screens.
