Coanda screen technology was developed for large-scale water infrastructure: municipal intakes, irrigation diversions and industrial-scale hydropower. Over the past two decades it has also become the preferred choice for off-grid micro-hydro operators (sites with no connection to the electricity grid), who discovered what engineers at large water and power utilities already knew: a self-cleaning intake with no moving parts and no power supply solves the single biggest operational problem in small hydropower, which is keeping the screen free of debris.
The micro-hydro market reached an estimated USD 2.05 billion in 2024, growing at 5.65% annually, with the segment holding over 55% of the total small hydropower market [1]. As this market grows (driven by rural electrification, off-grid rural homes, and small-scale renewable energy) the gap between do-it-yourself (DIY) intake screens and professional-grade engineering is becoming more apparent.
This guide bridges that gap. Whether you are an off-grid homeowner planning your first micro-hydro system or a consulting engineer designing a small-scale hydropower project for a client, we explain how to select an intake screen, size it and state its requirements, so that it works reliably for its full design life: not just the first season.
Table of Contents
- Why the Intake Screen Is the Most Critical Component
- The Off-Grid Intake Problem
- DIY vs. Professional Intake Screens: An Honest Comparison
- How a Coanda Intake Screen Works at Micro Scale
- How to Select the Right Intake Screen for Your Micro-Hydro System
- Sizing Your Micro-Hydro Intake Screen
- Material Selection for Small-Scale Projects
- Installation Considerations for Remote Sites
- When a Coanda Screen Is Not the Right Answer
- Frequently Asked Questions
- References
Why the Intake Screen Is the Most Critical Component
A micro-hydro system has four core components: the intake, the penstock (pipe), the turbine, and the generator. Of these, the intake screen determines everything downstream.
If the screen blocks, the turbine stops. If debris passes through the screen, it damages the turbine. If sediment accumulates in the penstock, flow drops and power output falls. Every failure mode in a micro-hydro system traces back to one question: what is the intake letting through, and what is it keeping out?
This is particularly acute for off-grid systems. A large grid-connected hydropower plant has operators, maintenance crews, and redundant systems. An off-grid micro-hydro system typically has one person (the property owner) who may be hours from the intake site and relies on the system for their primary or sole electricity supply.
The intake screen is not just another component. It is the component that determines whether the system operates unattended for months or requires weekly visits to remove blockages.
The Off-Grid Intake Problem
We have spoken with dozens of micro-hydro operators who describe the same cycle. The system works beautifully in the first weeks. Then autumn arrives. Leaves accumulate on the intake screen. Flow drops. Power output falls. Someone walks to the intake (often in rain, sometimes in snow), removes the debris by hand, and walks back. Two days later, it blocks again.
One off-grid user documented a branch jamming their turbine after just two days of operation [2]. Another describes cleaning their intake screen weekly during normal conditions and daily during leaf fall [3]. The common advice in micro-hydro forums is to "check your intake screen every few weeks during normal conditions, and more frequently during autumn" [3].
This is the fundamental problem. Traditional intake screens (bar screens, mesh baskets, perforated plates) require manual cleaning. For a hydropower plant run by a power utility with on-site staff, that is an operational task. For an off-grid homeowner, it is a constant burden on daily life, and it makes the entire system unreliable.
The solution is a screen that cleans itself. That is what Coanda technology provides.
DIY vs. Professional Intake Screens: An Honest Comparison
The micro-hydro community has an active DIY culture, and several manufacturers offer DIY-oriented Coanda intake screens at low prices. The most established is PowerSpout (New Zealand), which offers Coanda screens starting at approximately NZD $219–$754 [4].
These products have introduced thousands of people to Coanda technology. That is a real contribution. But there are real differences between a DIY-grade product and a professionally designed screen:
| Parameter | DIY-Grade (e.g., PowerSpout) | Professional-Grade (ADENCO) |
|---|---|---|
| Slot width | Fixed 1.5 mm | Custom, 0.5 to 2.0 mm (1.0 mm standard) to match turbine and debris; narrower slots on request |
| Material | 304 stainless steel | 304 standard; 304L, 316L, duplex or super duplex matched to water chemistry |
| Flow capacity | 6–17 l/s (fixed sizes) | Custom-sized to exact design flow |
| Screen width | Standard sizes only | Custom to site geometry and flow requirement |
| Wire profile | Standard | Optimised tilt angle and wire width for site conditions |
| Cold climate measures | None | Anti-icing options available |
| Engineering support | Installation guide | Full hydraulic design, material selection, sizing calculations |
| Fish protection compliance | Not certified | Can be supplied to meet regulatory requirements where applicable |
| Design life | Not specified | up to 25 years with correct material selection |
When DIY makes sense: For systems under 5 kW with clean freshwater (chloride <200 ppm), minimal fish protection requirements, and a system owner who accepts occasional maintenance, a DIY Coanda screen is a sensible, cost-effective choice.
When professional engineering is required: For systems where reliability is critical (sole power source), water chemistry is corrosive (brackish, acidic, or mineral-laden), fish protection regulations apply, cold climate anti-icing is needed, or the flow rate exceeds standard product ranges, a custom-designed screen eliminates the risks that pre-built, fixed-size screens sold off the shelf for the DIY micro-hydro market cannot cover.
This is not a criticism of DIY products: it is a recognition that different applications have different requirements. A $300 screen is excellent value for a weekend cottage. It is not the right choice for a community micro-hydro system that powers 20 homes.

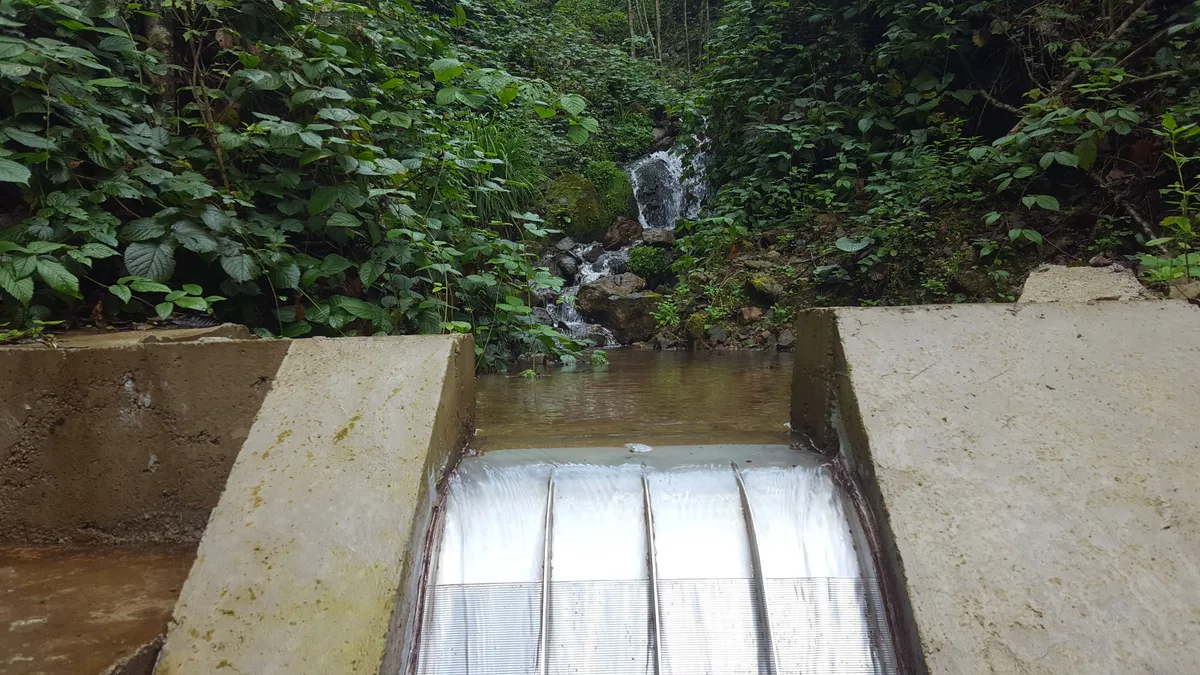

How a Coanda Intake Screen Works at Micro Scale
The physics are identical whether the screen is 0.3 m wide or 3.0 m wide. Water flows over a curved acceleration plate, forms a thin, fast-moving sheet of water, and passes through tilted wedge wire (V-wire) slots. Debris and sediment larger than the slot width are carried over the screen face by the shearing flow and discharged downstream [5][6].
At micro scale, three characteristics make this especially valuable:
Gravity-powered. The entire process is powered by hydraulic head alone. For off-grid sites with no electrical supply at the intake (which describes most micro-hydro sites) this removes a basic contradiction: needing electricity at the intake in order to operate a screen whose purpose is to help generate electricity.
Fully static construction. There is nothing to break, jam, seize, or wear out. At remote sites where maintenance access may require a walk up a hillside, this is not a convenience: it is a necessity.
Continuous debris removal. As long as there is flow across the screen, debris is swept off. During autumn leaf fall, spring pollen, and storm events that bring heavy debris loads, the screen keeps working. This is the feature that turns micro-hydro from a high-maintenance system into a reliable one.
For a detailed explanation of Coanda screen physics and design parameters, see: What Is a Coanda Intake Screen? The Complete Guide.
How to Select the Right Intake Screen for Your Micro-Hydro System
Selecting the right intake screen involves matching five parameters to your site:
Step 1: Measure Your Design Flow Rate
Your design flow is the maximum water volume you need the screen to deliver to the penstock, measured in litres per second (l/s). This is determined by your turbine's rated flow, not the total flow of the river or creek.
Example: A PowerSpout PLT turbine with a single nozzle uses approximately 2–4 l/s. A pair of larger Pelton turbines for a 10 kW community system might require 30–50 l/s.
If you have not yet selected a turbine, calculate the theoretical power first:
Power (watts) = Net hydraulic head (m) × Flow (l/s) × 9.81 × Turbine efficiency
Typical turbine efficiency ranges from 50–70% for micro-hydro systems [7].
Step 2: Assess Your Debris Environment
Walk the catchment above your proposed intake site. What do you see?
- Light debris (rocky alpine stream, sparse vegetation): 1.5–2.0 mm slots are sufficient
- Moderate debris (mixed forest, seasonal leaf fall): 1.0–1.5 mm slots recommended
- Heavy debris (dense broadleaf forest, agricultural runoff, livestock access): 0.5–1.0 mm slots recommended
The slot width determines what passes through to your penstock and turbine. Narrower slots mean cleaner water but require more screen width for the same flow rate.
Step 3: Test Your Water Chemistry
For freshwater mountain streams with chloride below 200 ppm (the vast majority of micro-hydro sites), 304 stainless steel is the standard and most economical choice.
If the water at your site has any of the following, you need laboratory water analysis and likely a higher-grade material:
- Coastal or estuarine location
- Mining activity upstream
- Agricultural chemical runoff
- Geothermal influence
- Visible mineral staining on rocks
For a detailed material selection guide, see: 304 vs. 316 Stainless Steel for Water Intake Screens.
Step 4: Check Fish Protection Requirements
In many jurisdictions, even small-scale water abstraction (withdrawal) requires fish screening. Check with your local environmental agency before selecting the screen. Key regulations include:
- UK: Environment Agency requires maximum 3 mm slot width for upland sites, 1 mm near tidal waters [8]
- EU: Water Framework Directive ecological status requirements [9]
- US: State-level fish protection rules may apply even to very small water withdrawals
- Australia/NZ: Varies by state/region: many require screening for all water withdrawals
Coanda screens with slot widths of 0.5 to 2.0 mm (1.0 mm standard; narrower slots on request) can be supplied to meet most fish screening requirements. The self-cleaning design means fish approaching the screen are carried over it, not pressed against its surface by the flow.
Step 5: Evaluate Cold Climate Needs
If your site experiences freezing temperatures, consider:
- Mild frost (occasional freezing, above -10°C): Standard Coanda screens cope with this without modification. The flowing water prevents ice formation on the wire surface under most conditions.
- Moderate cold (regular sub-zero, down to -14°C): The screen may require periodic manual removal of ice. Position the screen to maximise sun exposure where possible.
- Severe cold (sustained below -14°C): Anti-icing measures are recommended: electric heating elements, warm water recirculation, or an insulated enclosure. See: Anti-Icing Technology for Water Intake Screens.
Sizing Your Micro-Hydro Intake Screen
The fundamental sizing equation for Coanda screens is:
Required screen width (m) = Design flow (l/s) ÷ 140
This 140 l/s per metre figure is the generic industry baseline for the US Bureau of Reclamation (USBR) reference geometry under standard conditions (1.0 mm slots, moderate tilt angle, adequate hydraulic head) [5], which is what makes it useful for a preliminary estimate on any screen. ADENCO's own series are rated at 35, 67 and 150 l/s per metre for the ADENCO-45, ADENCO-70 and ADENCO-127, so size the final configuration using the chosen model's rated capacity. Adjustment factors apply for different slot widths and site conditions.
Micro-Hydro Sizing Examples
| System Size | Turbine Type | Design Flow | Required Screen Width | ADENCO Recommendation |
|---|---|---|---|---|
| 1–2 kW off-grid cottage | Single Pelton/Turgo | 3–8 l/s | 0.02–0.06 m | Minimum practical panel: 0.3 m (provides large safety margin) |
| 5 kW rural home | Pelton pair | 10–20 l/s | 0.07–0.15 m | 0.3 m panel with 1.0 mm slots |
| 10 kW community | Multi-nozzle Pelton | 30–50 l/s | 0.22–0.36 m | 0.4–0.5 m panel with 1.0 mm slots |
| 25 kW small plant | Turgo or small Francis | 50–100 l/s | 0.36–0.72 m | 0.5–0.8 m panel; consider 0.5 mm slots for Pelton |
| 50–100 kW mini-hydro | Francis or crossflow | 100–300 l/s | 0.72–2.15 m | Single or dual panel array; project-specific design |
Notice that for most micro-hydro applications, the minimum practical panel width (0.3 m) exceeds the calculated hydraulic requirement. This built-in safety margin ensures the screen copes with peak flows, reduced capacity from a partial debris load, and seasonal variations without any risk of undersupply.
For detailed sizing methodology including adjustment factors, worked examples, and multi-panel array design, see: How to Size a Coanda Intake Screen.
Material Selection for Small-Scale Projects
Material selection for micro-hydro is simpler than for large-scale plants because most sites take water from clean freshwater rivers or creeks:
304 stainless steel is the standard grade for micro-hydro sites on fresh water. It provides excellent corrosion resistance in freshwater with chloride below 200 ppm and is the most cost-effective grade; the low-carbon 304L variant is available on request. At today's market prices, 304L wedge wire costs approximately $2.50–3.50/kg [10].
316L stainless steel is required when the raw water has elevated chloride (200–1,000 ppm), acidic pH, or mineral content that could attack 304. This is uncommon for mountain streams but occurs at coastal sites, locations downstream of road salt application, and areas with geothermal influence. 316L adds approximately 30–50% to material cost.
What the L designation means. All Coanda screen panels are welded during fabrication. The low-carbon L grades (304L, 316L) limit sensitisation: the formation of chromium carbides at grain boundaries during welding that can cause intergranular corrosion in operation [11]. ADENCO supplies them on request where the water chemistry or a heated (anti-icing) screen justifies it.
For a comprehensive material selection guide including duplex and specialty grades, see: 304 vs. 316 Stainless Steel for Water Intake Screens.

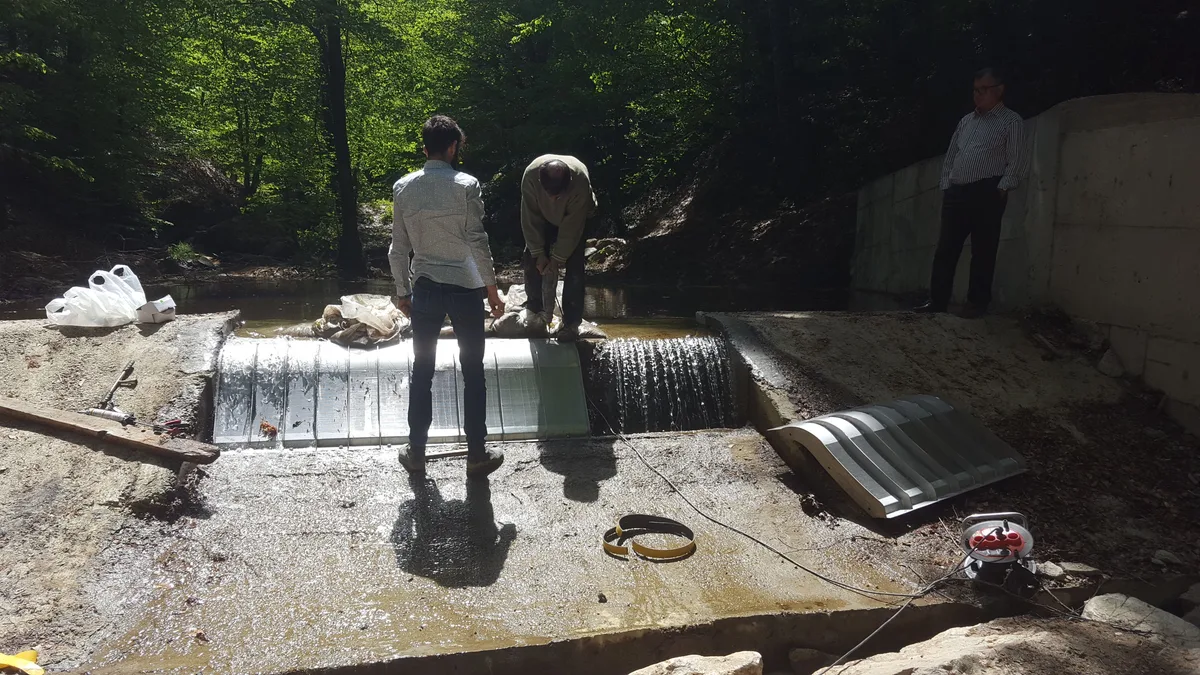

Installation Considerations for Remote Sites
Micro-hydro intakes are frequently located in remote, difficult-to-access terrain: steep hillsides, densely forested valleys, river gorges. This creates installation challenges that affect screen design:
Weight and portability. A single-panel ADENCO Coanda screen for a typical micro-hydro site weighs 15–40 kg depending on width and length. This is light enough to be carried in by hand along footpaths. Larger multi-panel arrays may require helicopter lift or transport in several stages.

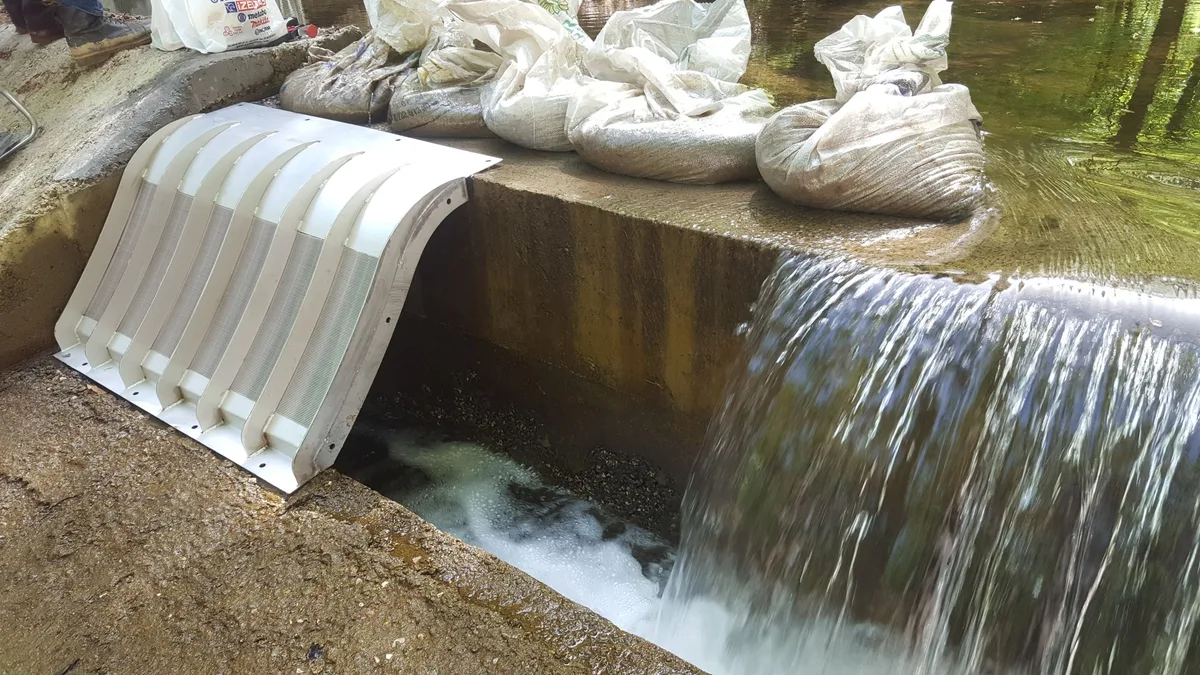

Civil works. The screen requires a weir or a natural step in the stream bed to create the flow over the acceleration plate. At many micro-hydro sites, a natural waterfall or stream cascade provides this. Where there is no natural step in the stream bed, a low concrete or stone weir must be constructed. The collection chamber below the screen connects to the penstock.
Orientation. Position the screen to maximise the self-cleaning flow path. The debris discharge should direct material back to the stream channel, not into a pocket with no outlet, where it accumulates. Where possible, orient the screen to receive morning sunlight: this speeds up the melting of ice in cold climates.
Flood protection. Mountain streams can rise dramatically during storm events. The intake structure must be designed to survive flood flows without damage. ADENCO designs screen frames with hydrodynamic profiles that let flood debris pass over rather than trapping it, and selects anchor systems designed for the site's flood recurrence interval.
When a Coanda Screen Is Not the Right Answer
For some micro-hydro sites, a Coanda screen is not the best choice:
-
Sites with very low hydraulic head (below 3 m). The head loss across a Coanda screen (450, 700 or 1,270 mm for ADENCO's standard screens; more for custom screens) is too large a fraction of the available hydraulic head. A submerged cylindrical screen or a simple inclined bar screen may be more appropriate.
-
Extremely low flow rates (below 1 l/s). At flows this small, the minimum practical Coanda panel provides far more capacity than needed, and a simple mesh basket with periodic manual cleaning may be the most cost-effective approach.
-
Temporary or experimental systems. If you are testing a site's suitability before committing to a permanent system, a low-cost DIY intake may be the right starting point. Upgrade to professional-grade engineering once you have confirmed that the site is suitable.
-
Submerged intake required. Some sites require the intake to be located below the water surface: for example, taking water from a reservoir or deep pool. Coanda screens need water flowing over the top of the screen and cannot operate as submerged intakes. A cylindrical wedge wire screen is the correct choice for submerged applications.
Frequently Asked Questions
What is the best intake screen for micro-hydro systems under 100 kW?
For micro-hydro systems under 100 kW with more than 3 m of available hydraulic head, Coanda screens are the best option because they operate without electricity, need only a seasonal manual clean and an annual inspection, and provide fine debris filtration (slot widths 0.5 to 2.0 mm, 1.0 mm standard; narrower slots on request): all critical for remote off-grid sites. For sites with very low hydraulic head (below 3 m), submerged wedge wire screens or inclined bar screens are more appropriate. For commercial-scale hydropower projects above 100 kW, see: Coanda Screens for Commercial Hydropower.
How much does a micro-hydro intake screen cost?
DIY-grade Coanda screens start at approximately NZD $219–$754 (PowerSpout range). Professional-grade custom screens from ADENCO are priced based on width, slot width, material grade, and cold-climate anti-icing measures. For a typical single-panel micro-hydro system (0.3–0.5 m width, 304 stainless steel), the screen cost is a small fraction of the total system investment. For a detailed breakdown of all pricing factors, see: How Much Does a Coanda Screen Cost?.
Do I need a professional screen or will a DIY screen work?
For off-grid cottages and small rural home systems (under 5 kW) with clean freshwater and no fish protection requirements, a quality DIY Coanda screen is a sensible choice. For larger community systems, sites with corrosive water chemistry, systems that are the only source of power, locations where fish screening is required by regulation, or cold climate sites needing anti-icing, a professionally designed screen is strongly recommended. The cost difference is small relative to the system total, and the reliability difference can be the difference between a system that operates for its full design life and one that is abandoned after a few frustrating seasons.
What slot size do I need for my micro-hydro turbine?
For Pelton turbines (the most common in micro-hydro), 0.5–1.0 mm slots protect the high-precision nozzle and bucket components. For Turgo, 0.5–1.0 mm is also recommended. For crossflow turbines, 1.0–2.0 mm is typically sufficient. Match the slot width to your turbine's nozzle orifice diameter: the maximum particle size your turbine can tolerate. For the full turbine-type screening requirements table covering Pelton, Francis, Turgo, Crossflow, and Kaplan, see: Coanda Screens for Commercial Hydropower.
Can I install a Coanda screen myself?
A single-panel micro-hydro Coanda screen is manageable for an experienced DIY builder with basic construction skills. The screen itself is delivered as a fabricated panel: there is no on-site assembly of the wire or welding required. The civil works (weir construction, collection chamber, penstock connection) require concrete work and plumbing. Many micro-hydro operators complete the installation work themselves. ADENCO provides installation guidance with every screen and offers technical support by phone or email if questions arise during installation.
How often does a micro-hydro Coanda screen need maintenance?
Annual visual inspection and occasional pressure washing (every 3–5 years) to remove mineral deposits (scale) or biofilm. During extended low-flow periods, some debris may accumulate on the lower screen area: this is washed off automatically when flow rises. Compare this to conventional mesh or bar screens requiring weekly to daily cleaning by hand during debris-heavy seasons. For the full maintenance schedule and cost data, see: Coanda Screen Maintenance.
